ECO Version C for Airplane

ECO series brushless outrunner motors high quality and low price Based on the system of CA2 Designed for airplane model Easy to install(length) design Standard wire length and pre-soldered plugs

Product Description:

Dualsky ECO series brushless outrunner motors cover the RC power market which is less than 900W.

For the first time, the motors are named with Chinese name, expressing the importance of the Chinese market

ECO is positioning high quality and low price, which is suitable for the beginner and mid-level pilots of fixed wing aircrafts and multi rotors.

ECO series adopt new naming rule, name the motor according to the stator diameter and the length of the magnet

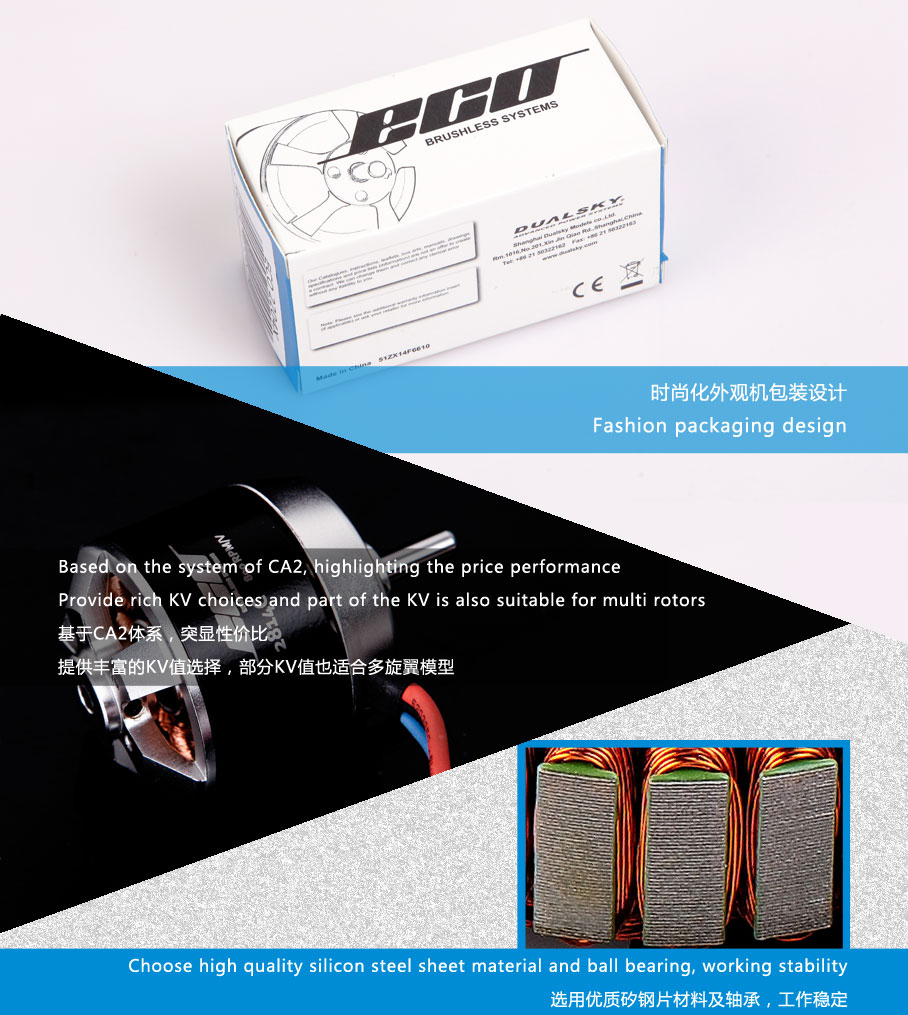

Fashionable packaging design


Based on the system of CA2, highlighting the price performance

Designed for airplane model

Provide rich KV choices and part of the KV is also suitable for multi rotors

Power ranging from the indoor model to the 50E model planes

Choose high quality silicon steel sheet material and ball bearing, working stability

Easy to install in two ways: installation after the fire prevention (the glider) and before fire prevention (aerobatic plane)

The whole aluminum alloy CNC machining and anodized

The marks are laser marked, not affect the dynamic balance

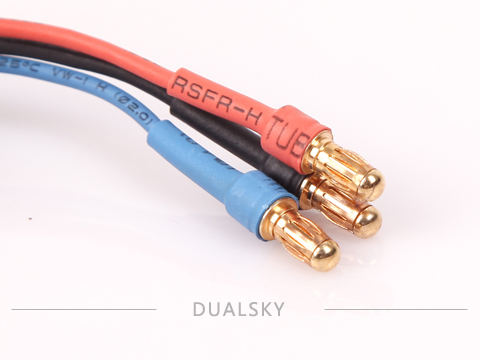

Standard wire length and pre-soldered plugs

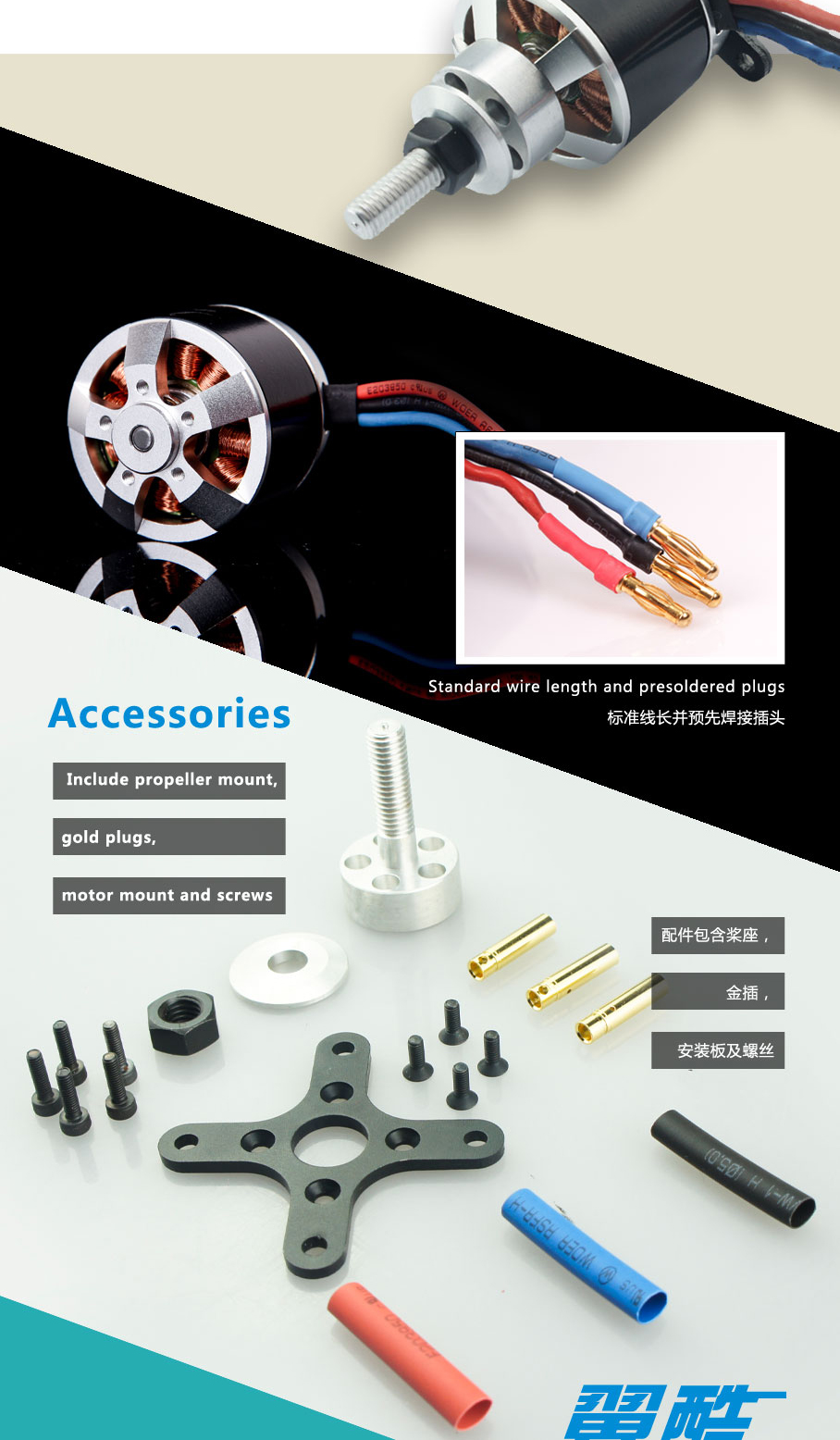

The accessories include propeller mount, gold plugs, mount and screws


  • Description
  • Item Number
  • Download

Item Name:ECO Version C for Airplane

Item No:

Item NO. Model - Turns RPM/V
(KV)
货号 型号 KV

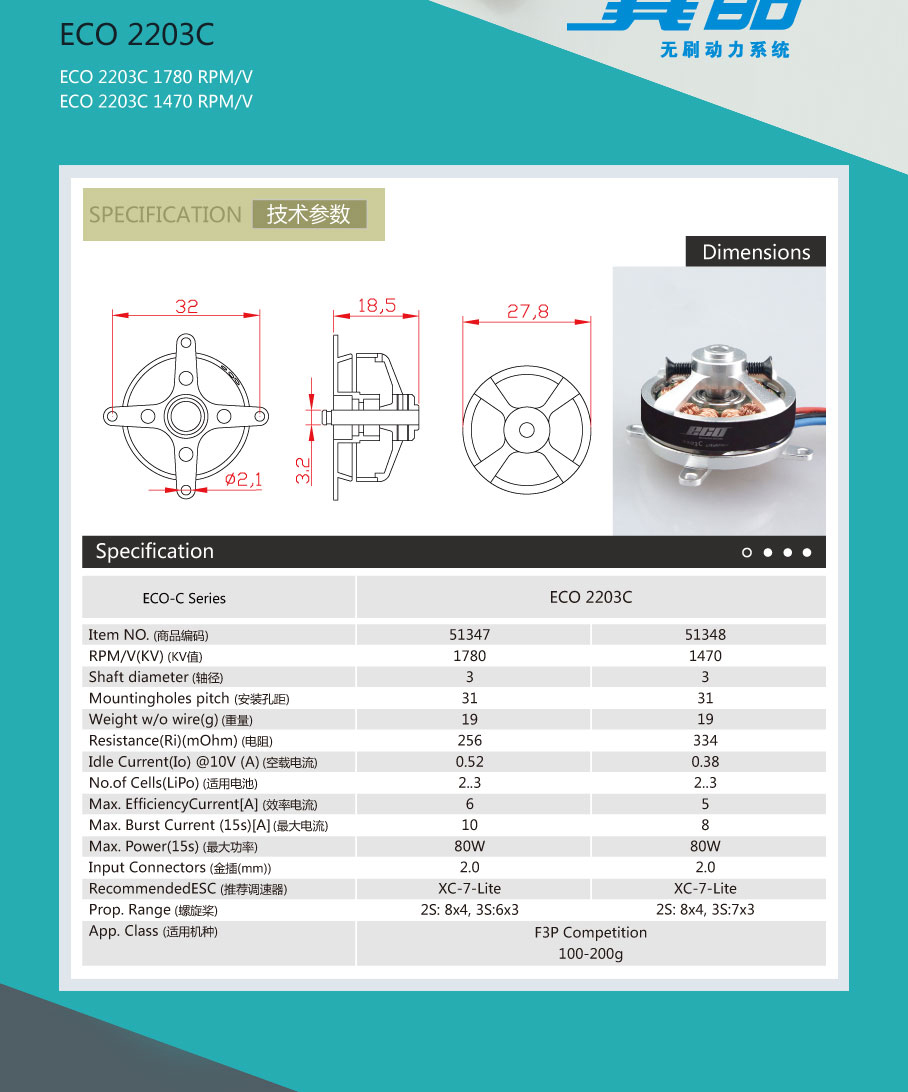

51347 ECO 2203C 1780
51348 ECO 2203C 1470

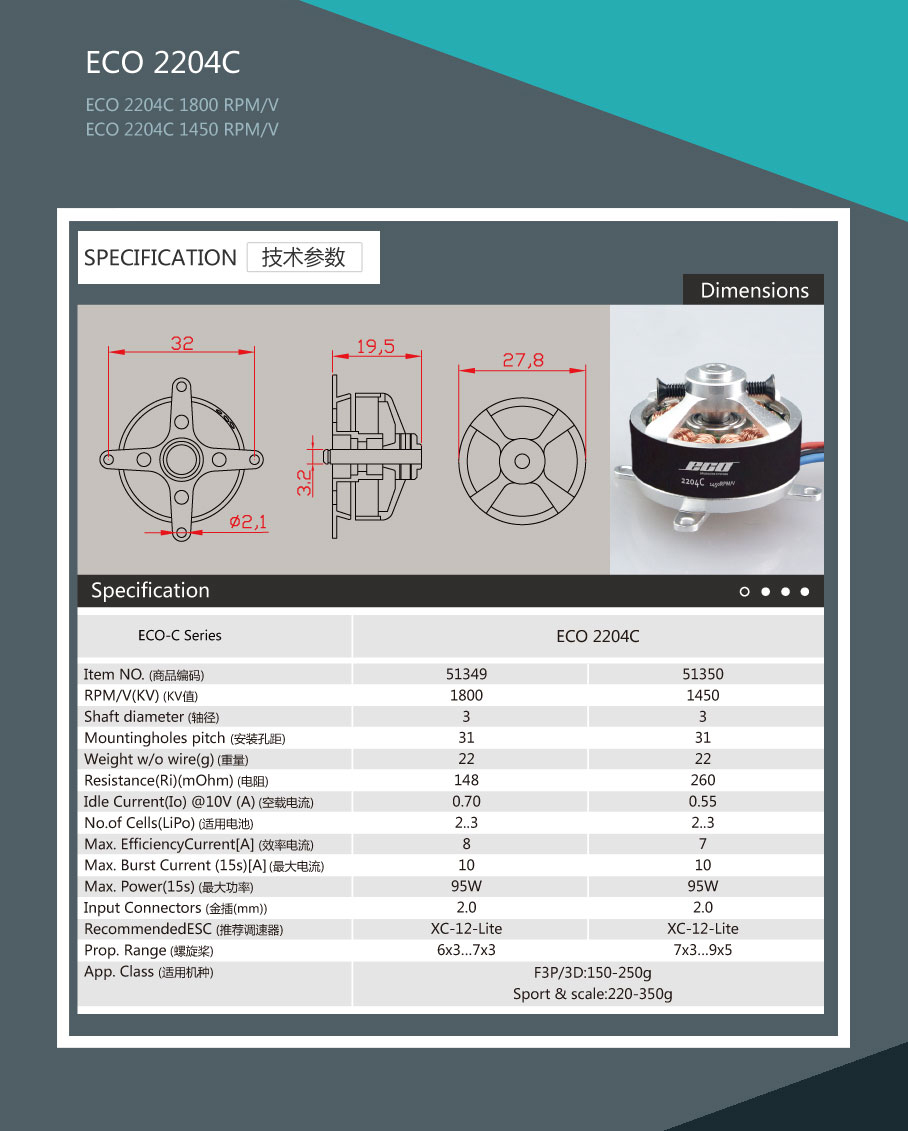

51349 ECO 2204C 1800
51350 ECO 2204C 1450

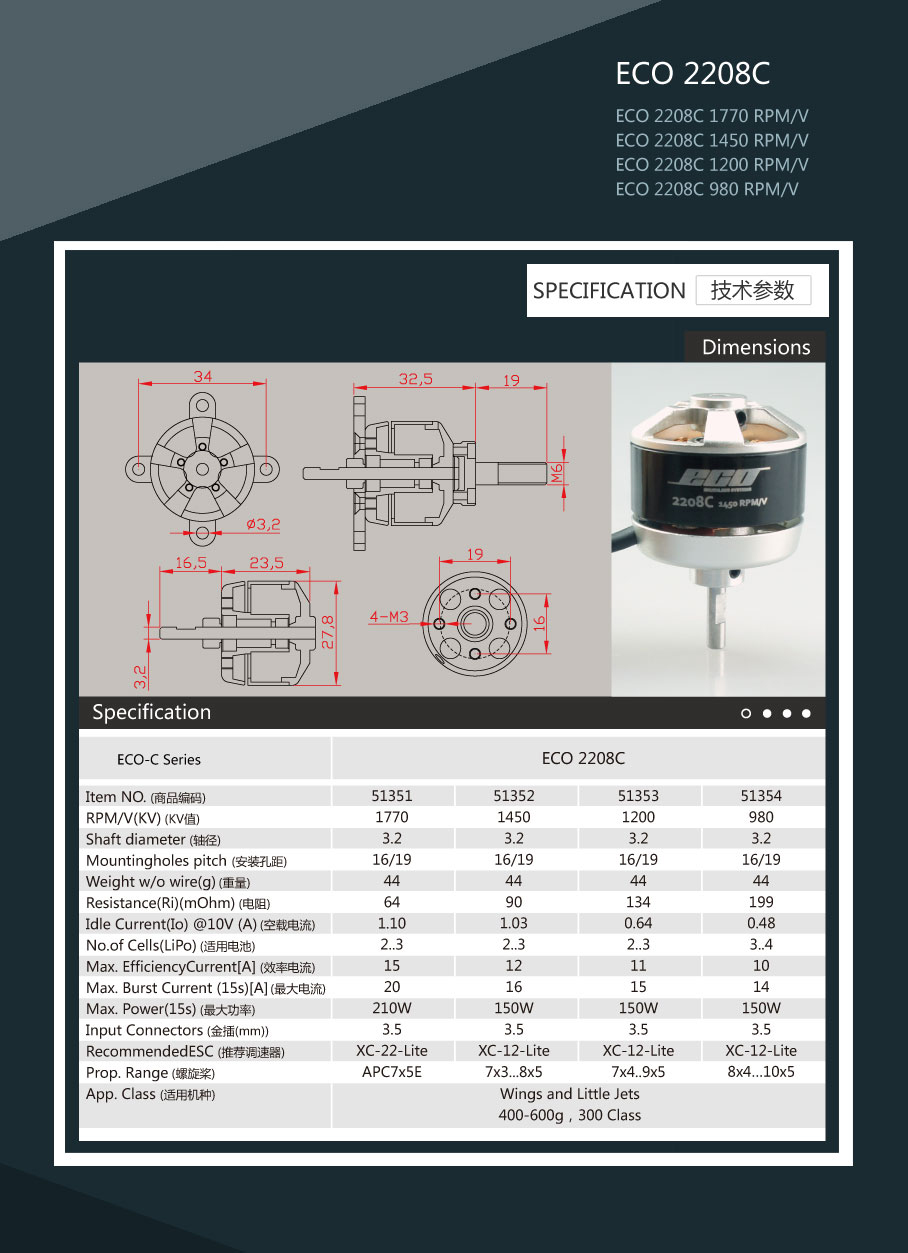

51351 ECO 2208C 1770
51352 ECO 2208C 1450
51353 ECO 2208C 1200
51354 ECO 2208C 980

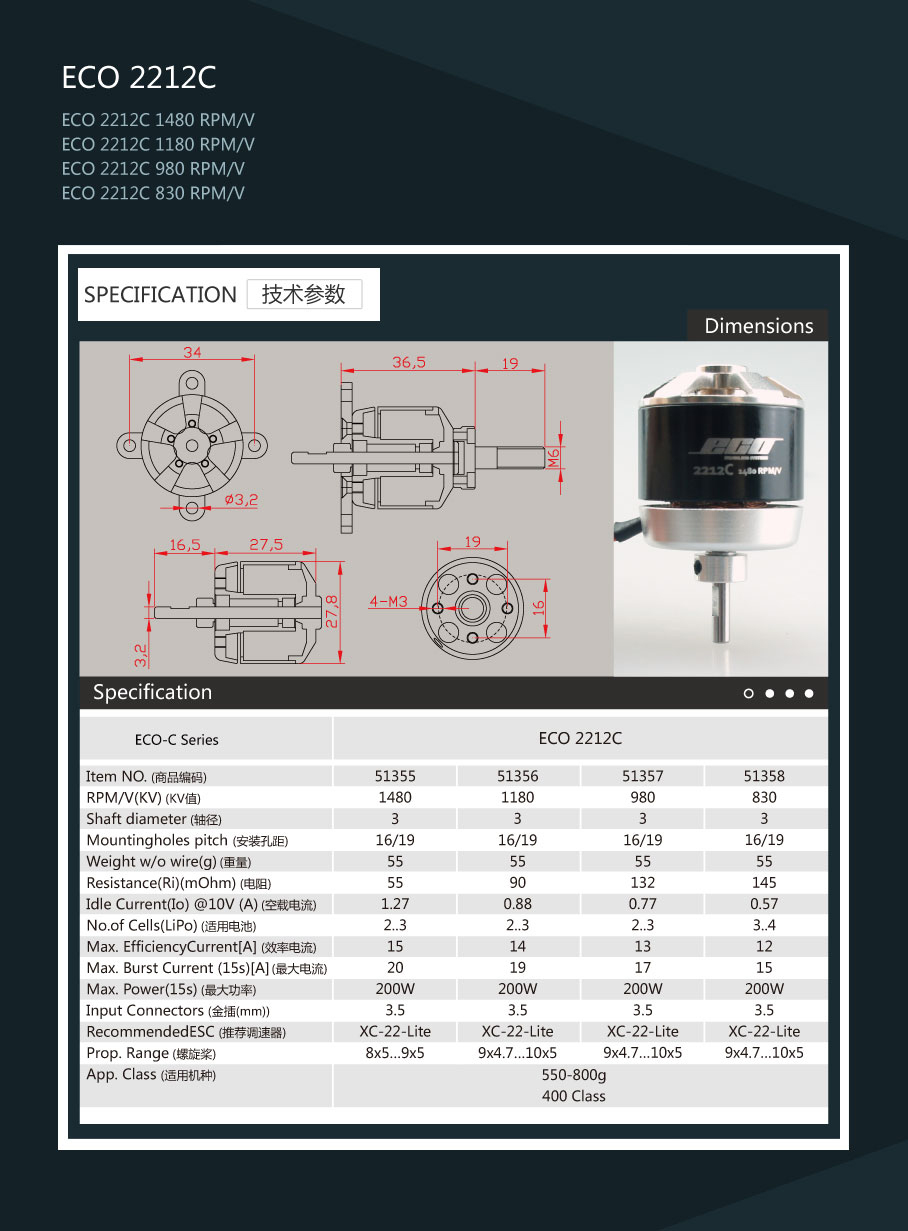

51355 ECO 2212C 1480
51356 ECO 2212C 1180
51357 ECO 2212C 980
51358 ECO 2212C 830

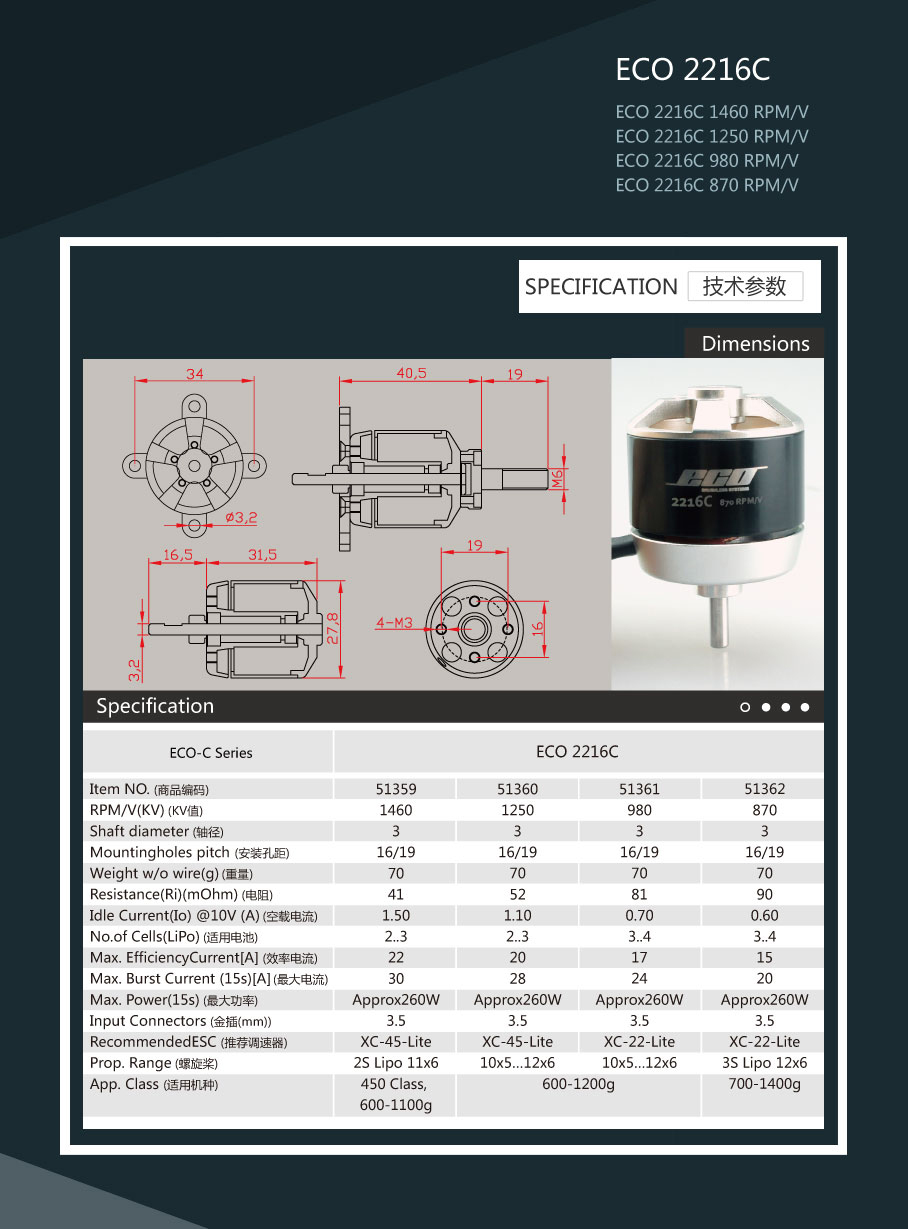

51359 ECO 2216C 1460
51360 ECO 2216C 1250
51361 ECO 2216C 980
51362 ECO 2216C 870

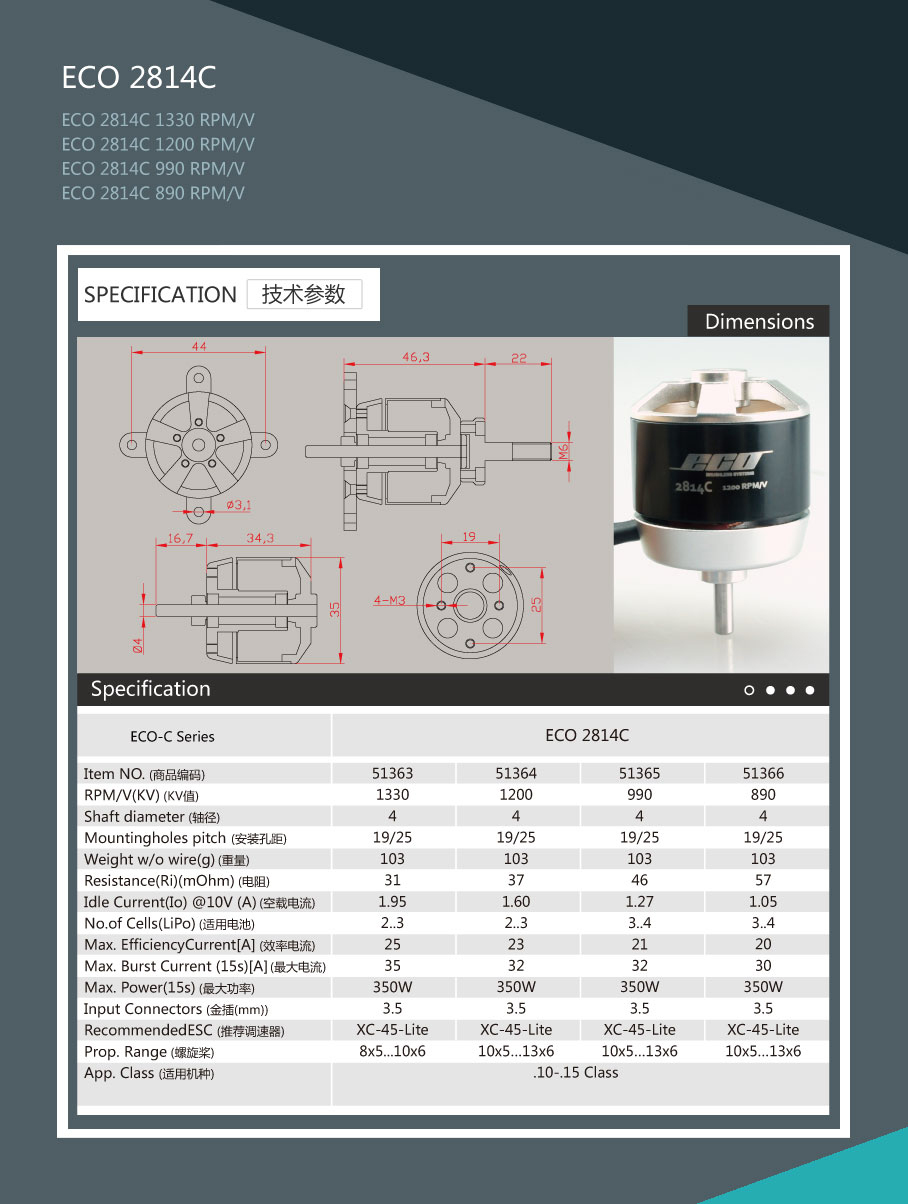

51363 ECO 2814C 1330
51364 ECO 2814C 1200
51365 ECO 2814C 990
51366 ECO 2814C 890

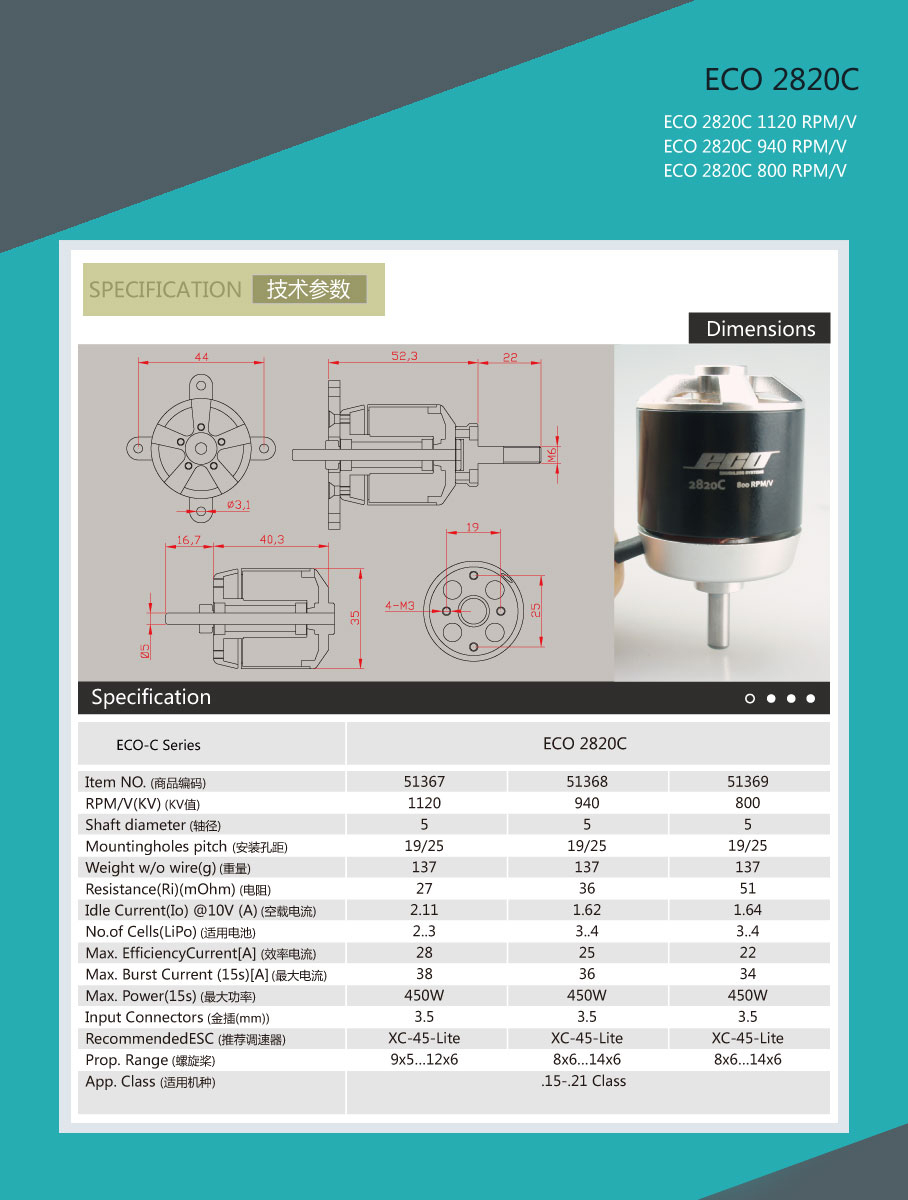

51367 ECO 2820C 1120
51368 ECO 2820C 940
51369 ECO 2820C 800

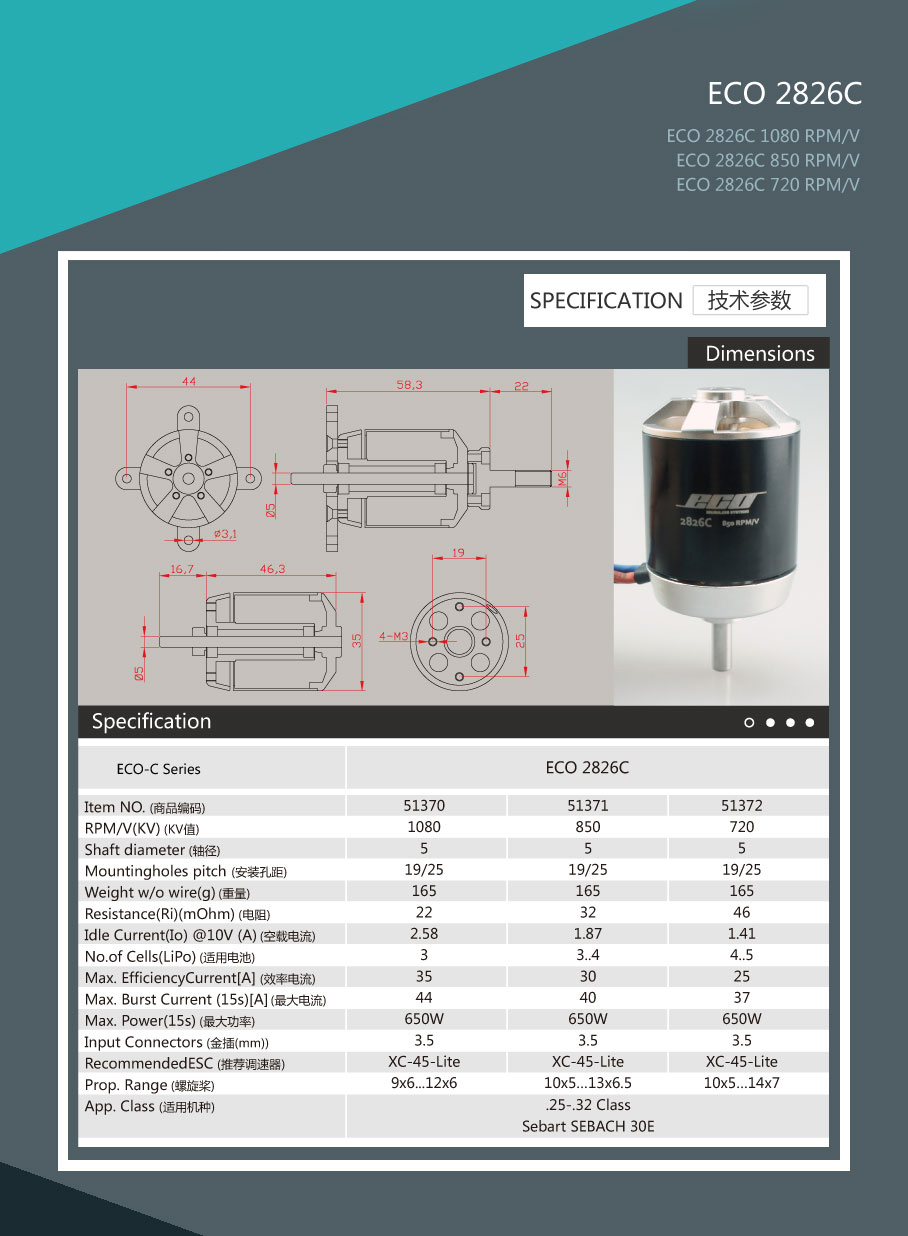

51370 ECO 2826C 1080
51371 ECO 2826C 850
51372 ECO 2826C 720

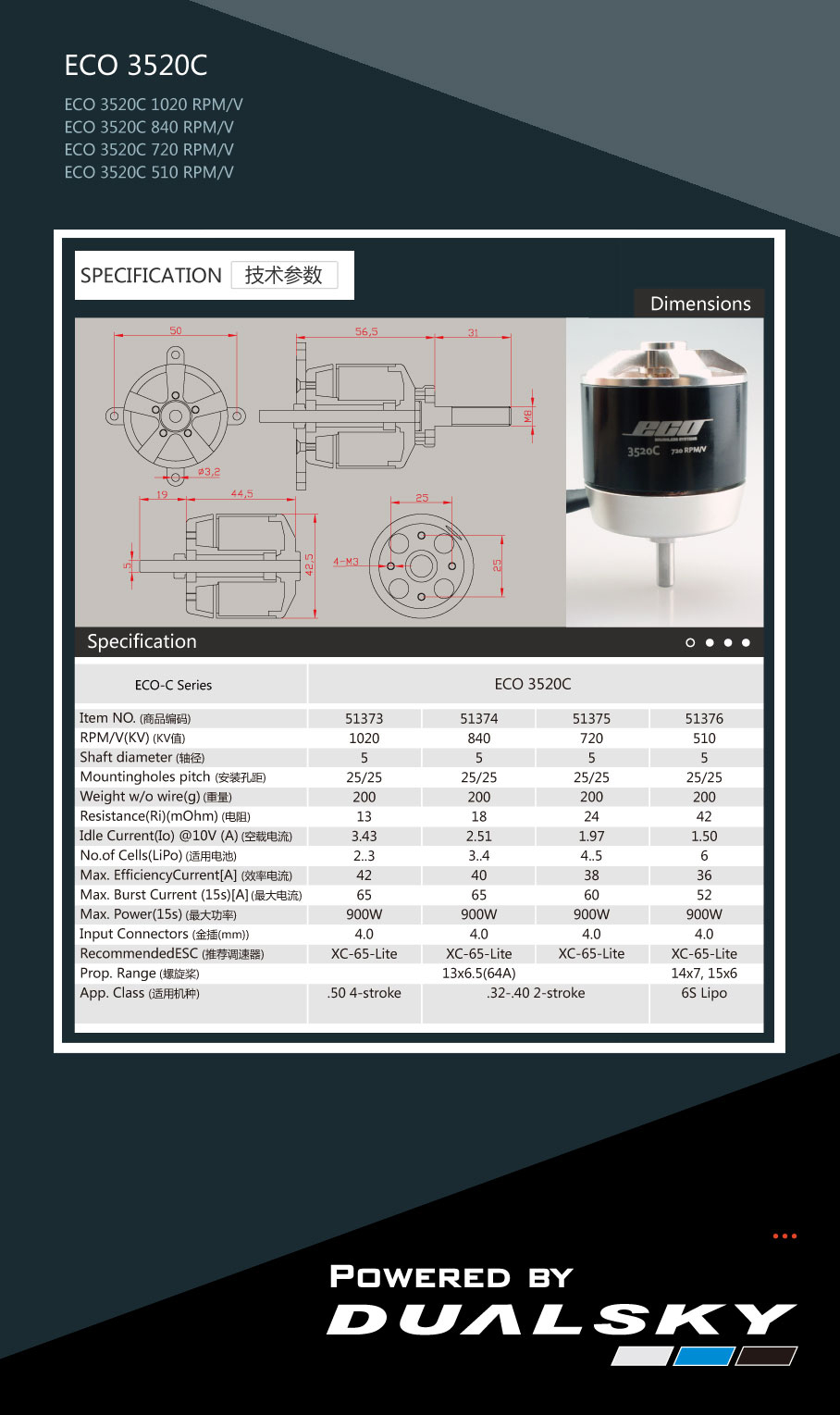

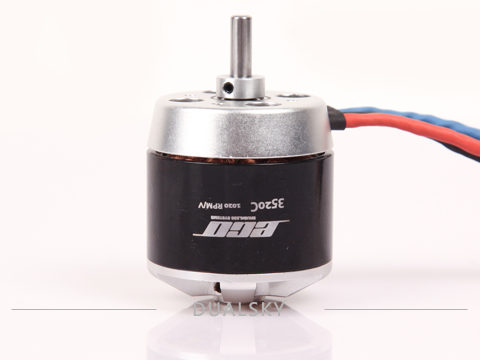

51373 ECO 3520C 1020
51374 ECO 3520C 840
51375 ECO 3520C 720
51376 ECO 3520C 510
