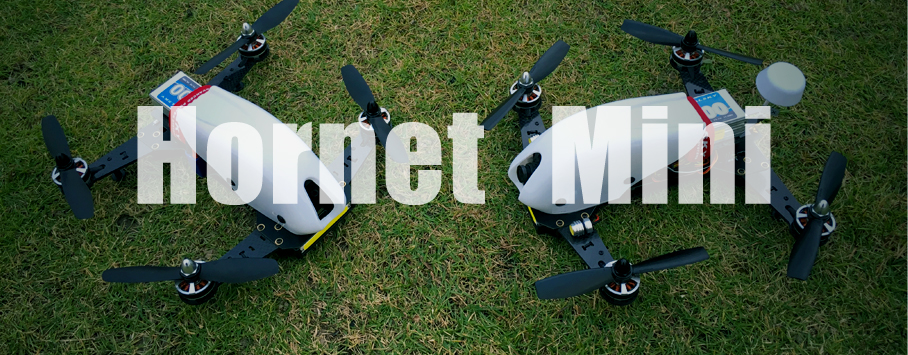

Hornet Mini

Product Description:

Hornet Mini features:

KIT version features:

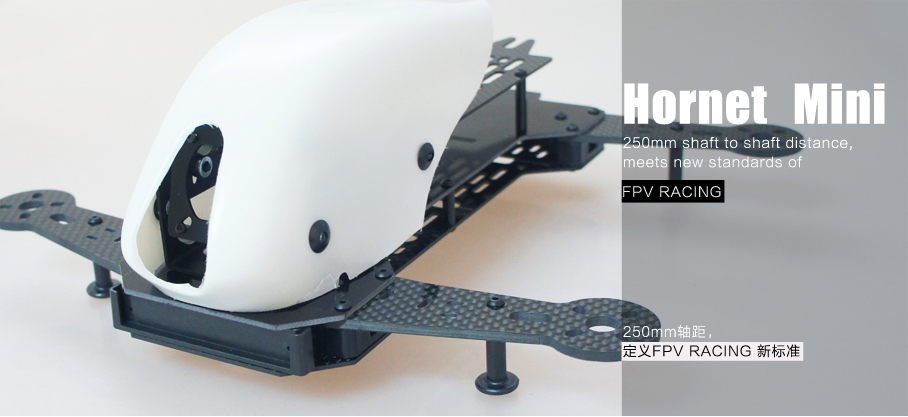

* 250mm shaft to shaft distance, meets new standards of FPV RACING

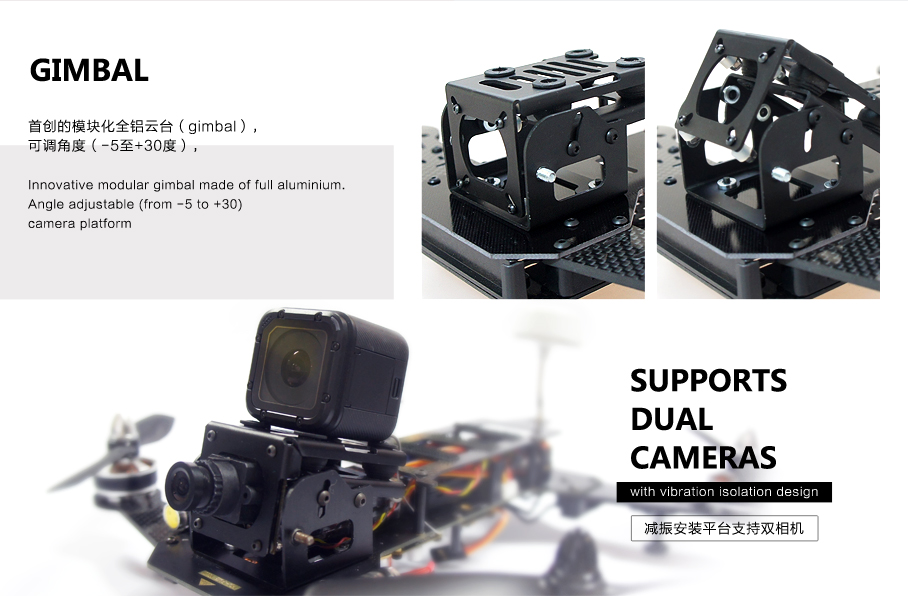

* Innovative modular gimbal made of full aluminium. Angle adjustable (from -5 to +30) camera platform, supports dual cameras with vibration isolation design

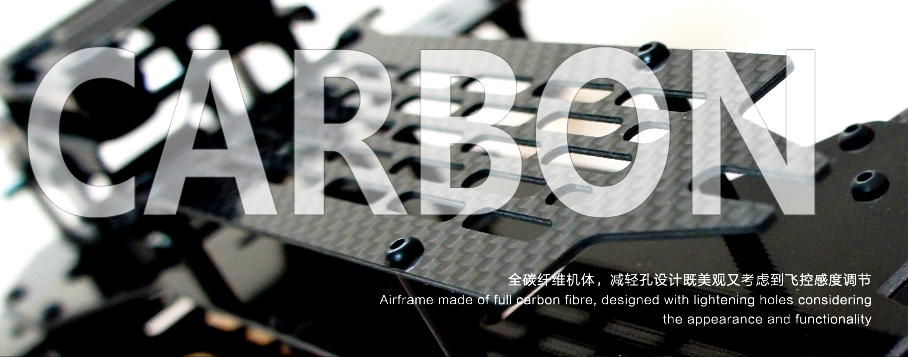

* Airframe made of full carbon fibre, designed with lightening holes considering the appearance and functionality

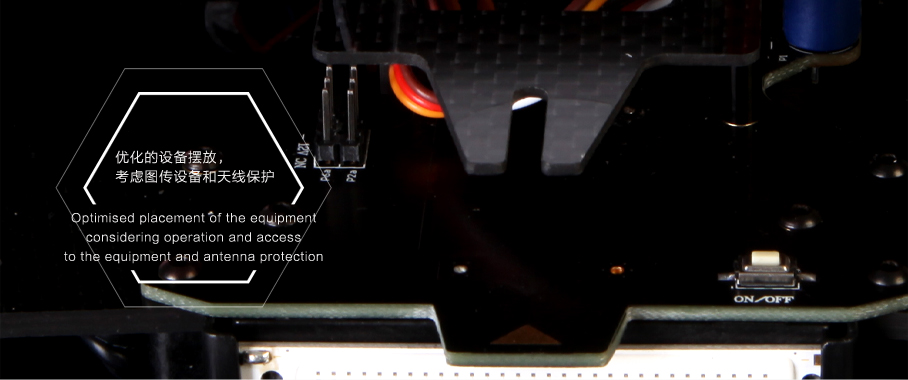

* Optimised placement of the equipment considering operation and access to the equipment and antenna protection

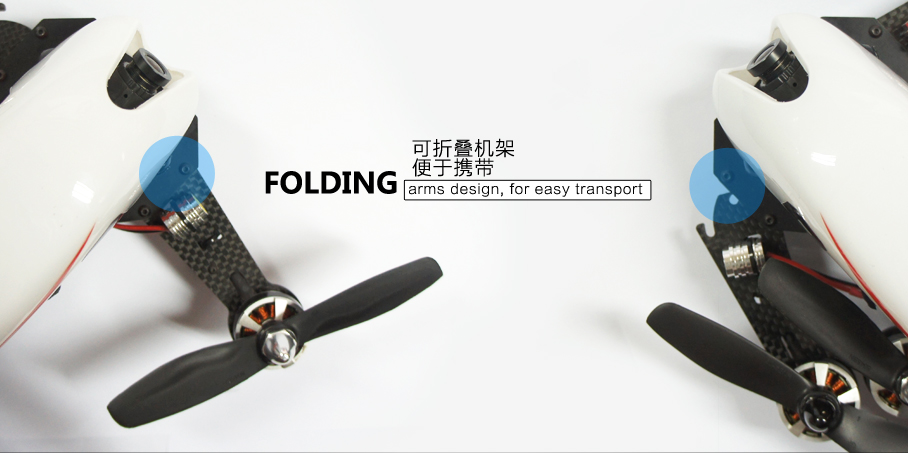

* Folding arms design, for easy transport
* Nylon enhanced arm joints and landing gear
* Large-space design, able to support 1300-2200mah,3-4S batteries

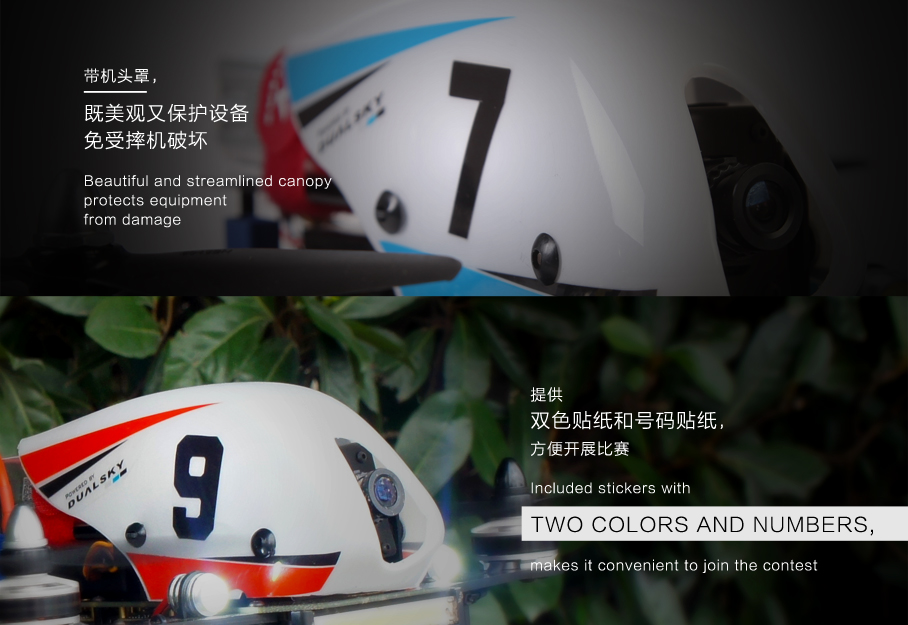

* Beautiful and streamlined canopy protects equipment from damage
* Included stickers with two colors and numbers, makes it convenient to join the contest
* Nylon enhanced front and back bumpers, allows the installation of LED lights

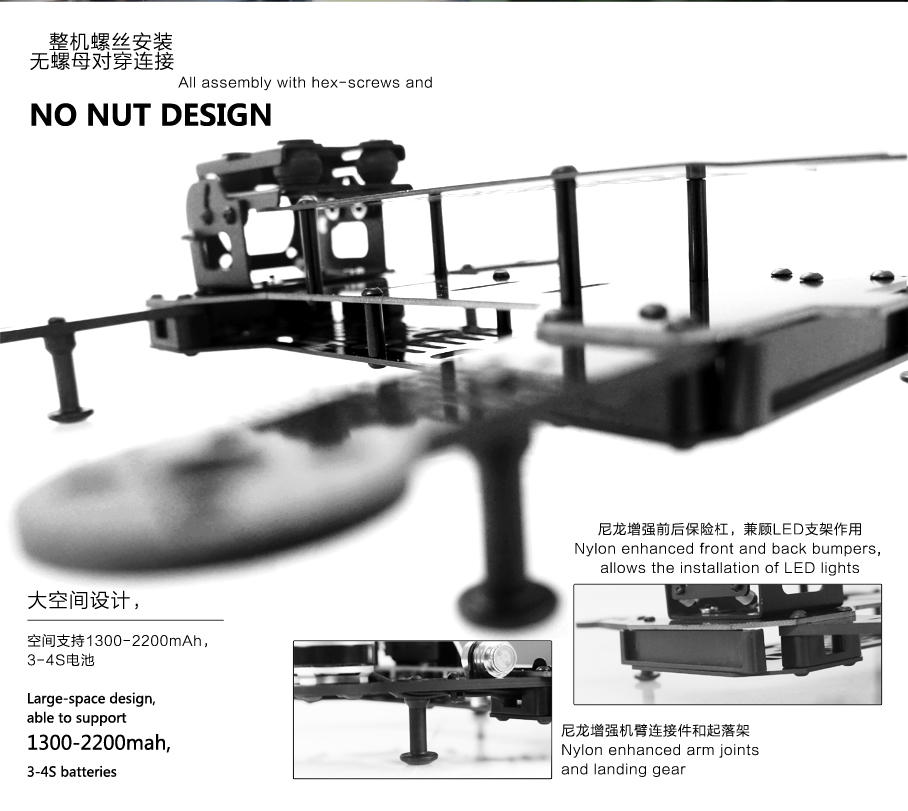

* All assembly with hex-screws and no nut design

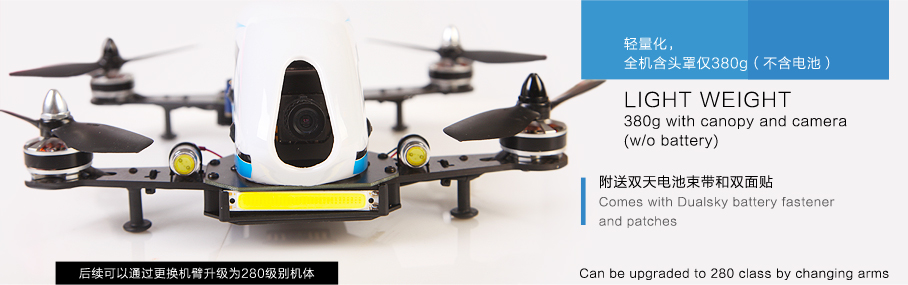

* Light weight, 380g with canopy and camera (w/o battery)
* Can be upgraded to 280 class by changing arms
* Comes with Dualsky battery fastener and patches

Additional features of the  ARF version

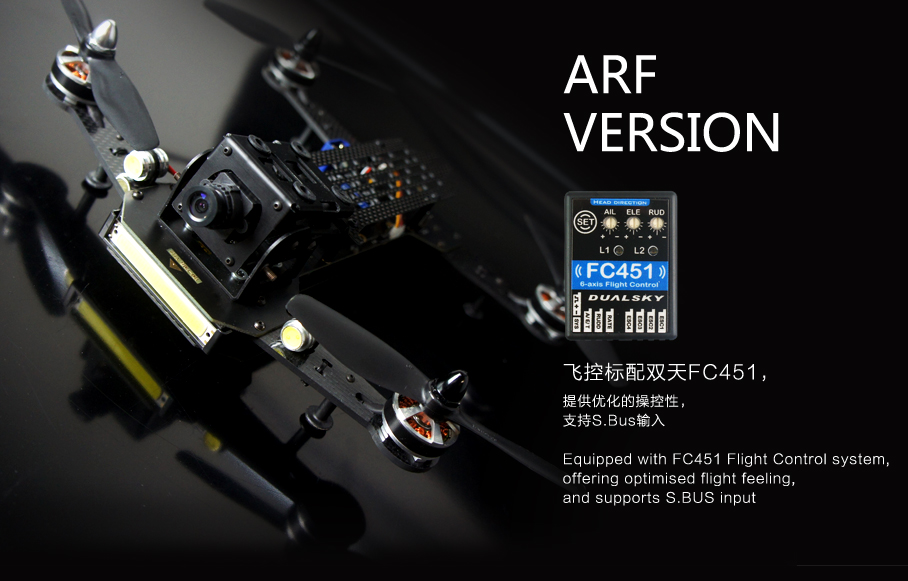

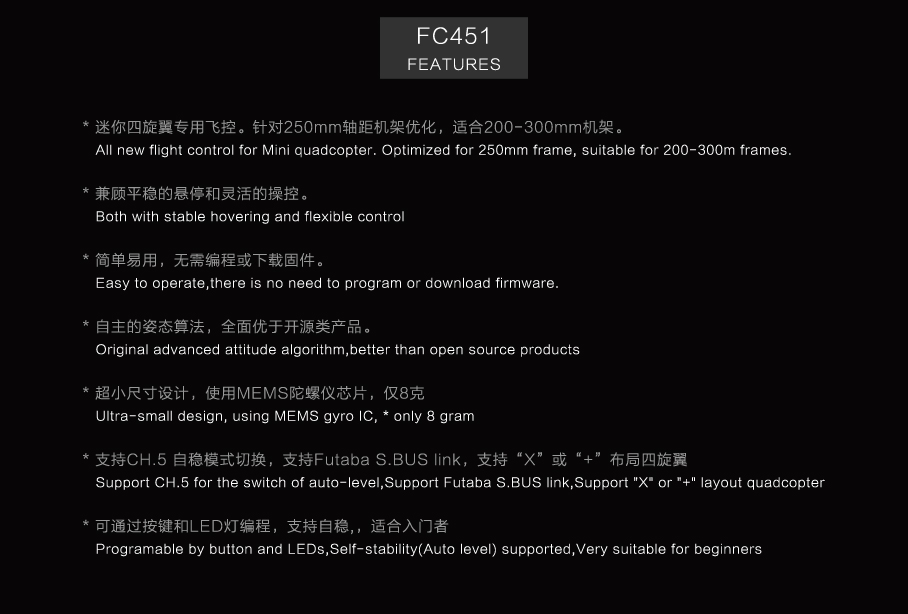

* Equipped with FC451 Flight Control system, offering optimised flight feeling, and supports S.BUS input
* Modular-designed 12A ESC, support 3-4S,plug and play, no need to solder anything
* ESC can support active braking and ONE SHOT

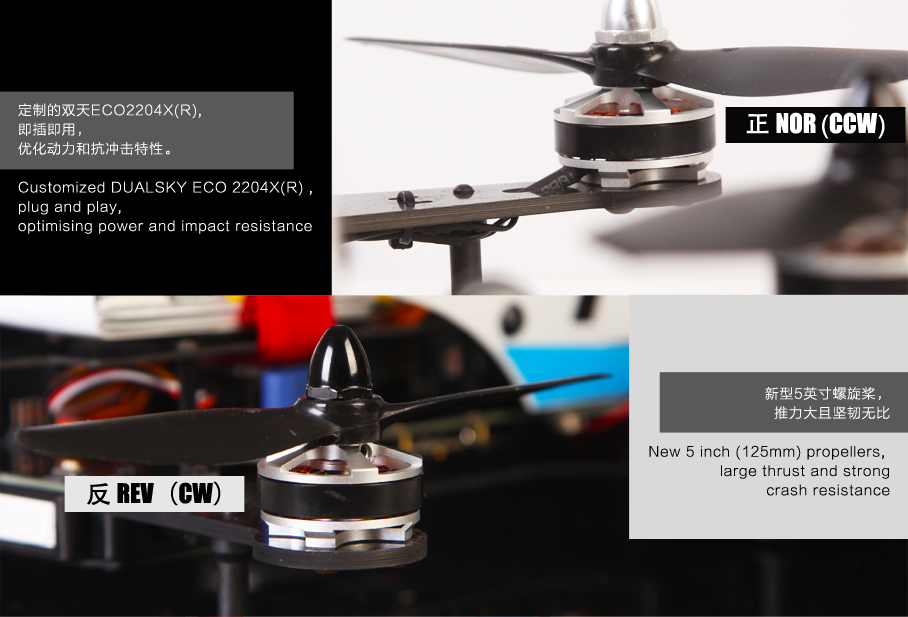

* Customized DUALSKY ECO 2204X(R) ,plug and play, optimising power and impact resistance
* New 5 inch (125mm) propellers, large thrust and strong crash resistance
* With the 12V DC power supply module, it is easy to connect the video transmitter

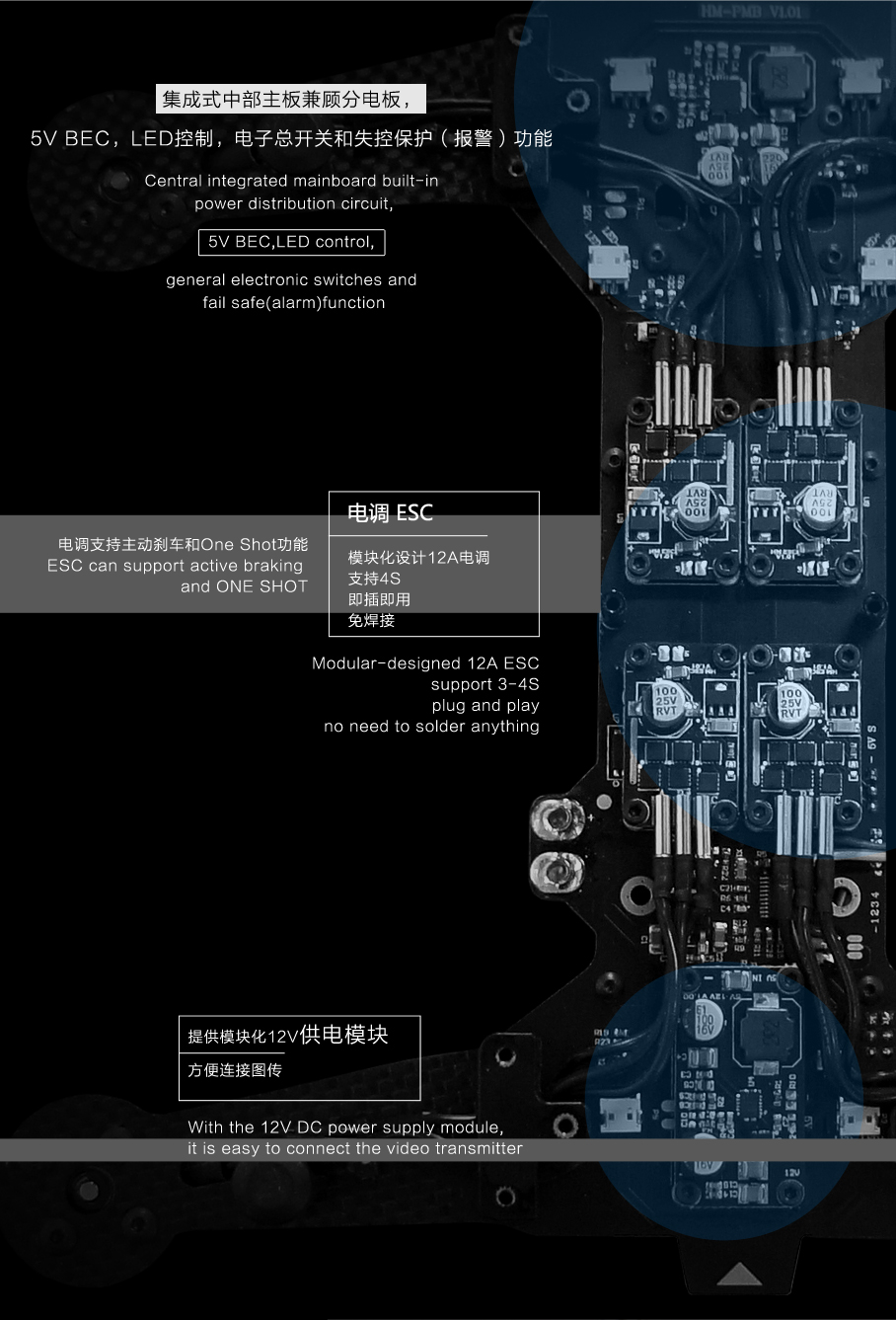

* Central integrated mainboard built-in power distribution circuit,5V BEC,LED control, general electronic switches and fail safe(alarm)function

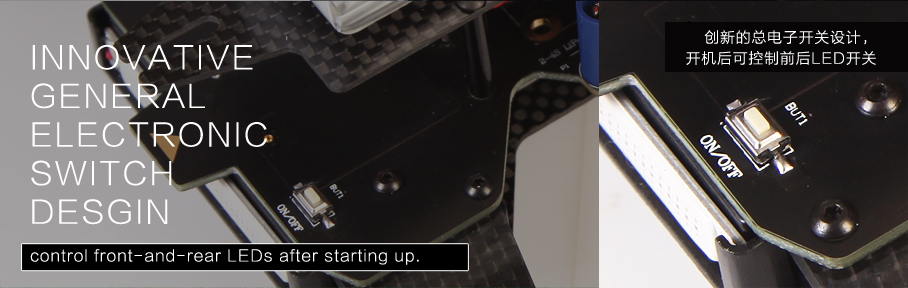

* Innovative general electronic switch design---control front-and-rear LEDs after starting up.

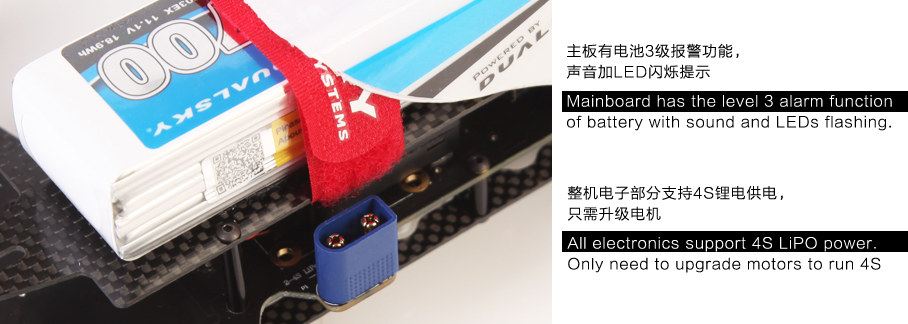

* Mainboard has the level 3 alarm function of battery with sound and LEDs flashing.

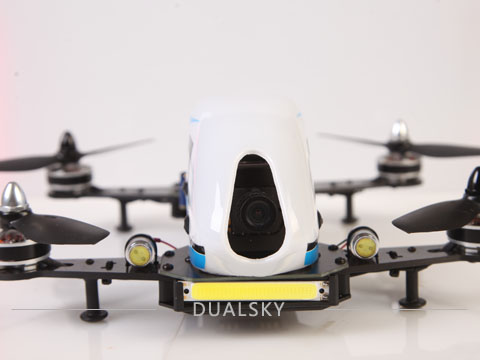

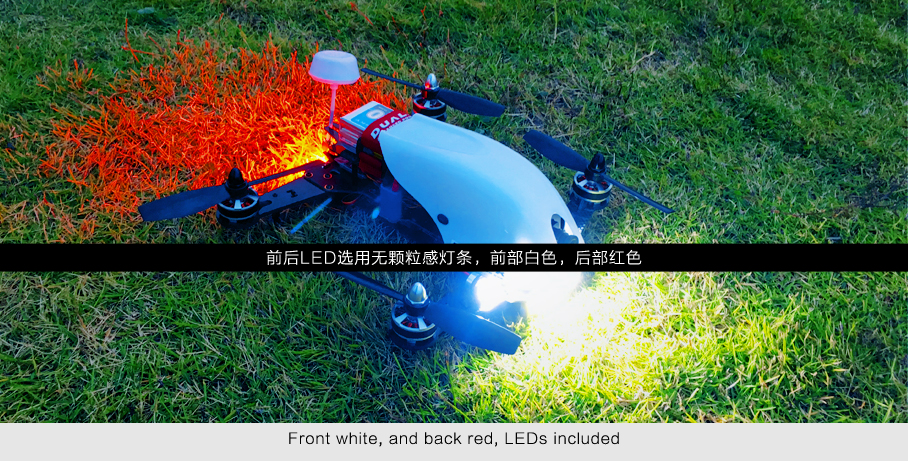

* Front white, and back red, LEDs included

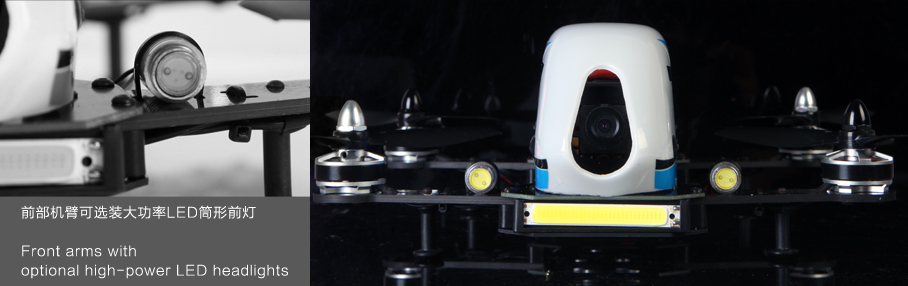

* Front arms with optional high-power LED headlights
* All electronics support 4S LiPO power. Only need to upgrade motors to run 4S

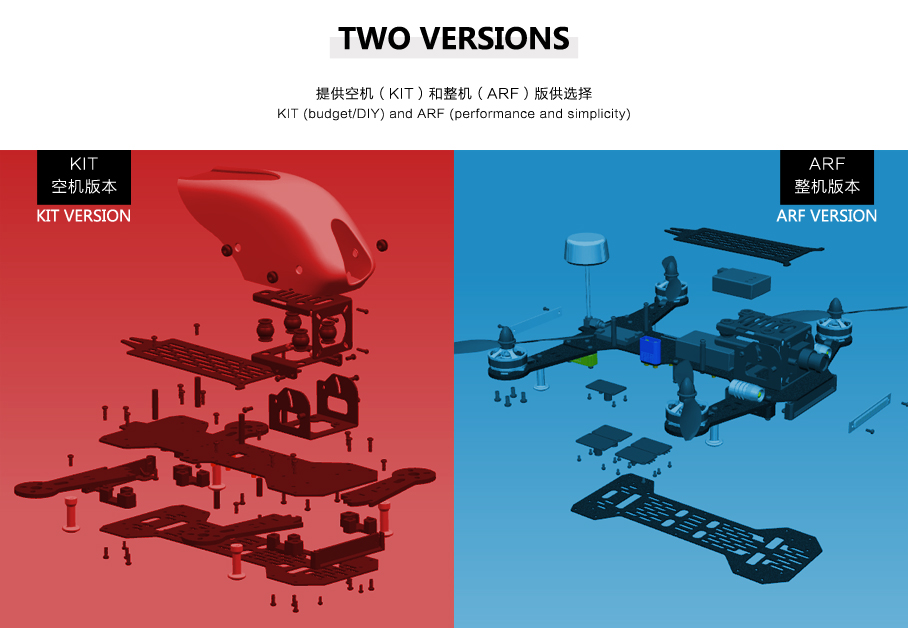

* Two Versions: KIT (budget/DIY) and ARF (performance and simplicity)


  • Description
  • Item Number
  • Download

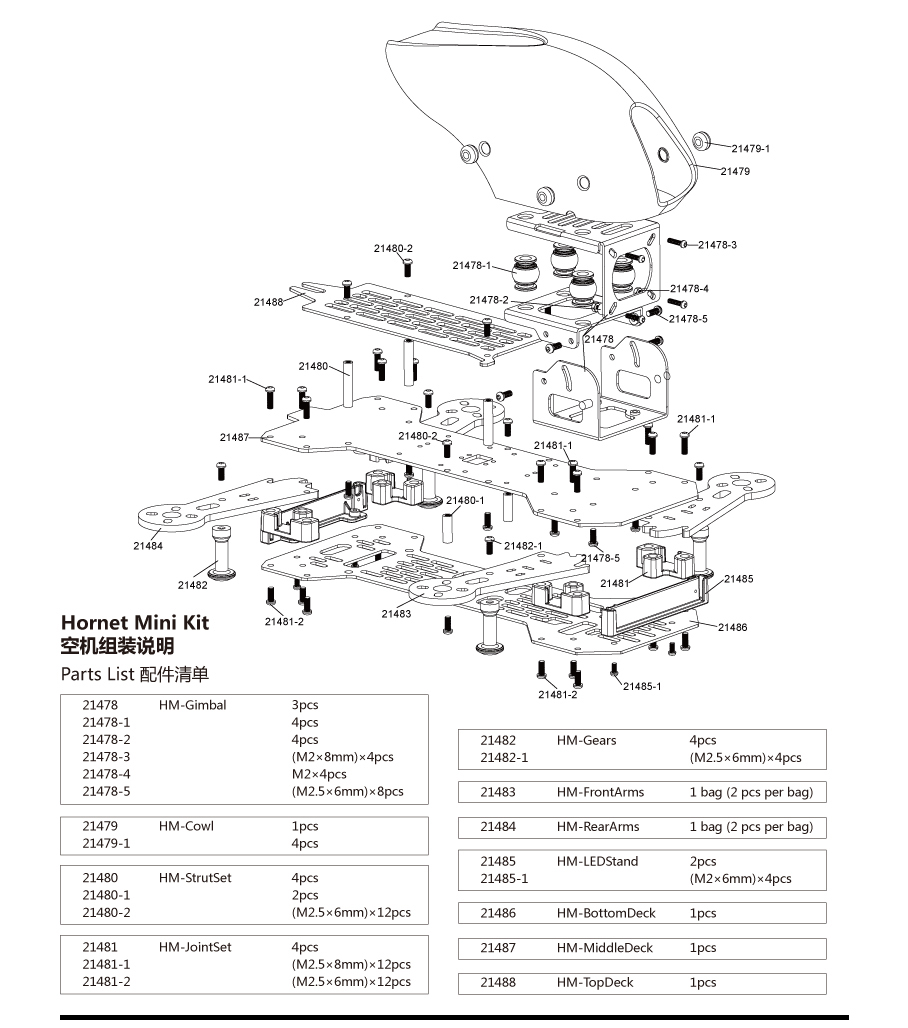

Hornet Mini KIT(#21504)

Item No.
Name
21478
HM-Gimbal
21479
HM-Cowl
21480 HM-StrutSet

21481

HM-JointSet
21482 HM-Gears
21483 HM-FrontArms
21484 HM-RearArms
21485 HM-LEDStand
21486 HM-BottomDeck
21487 HM-MiddleDeck
21488 HM-TopDeck

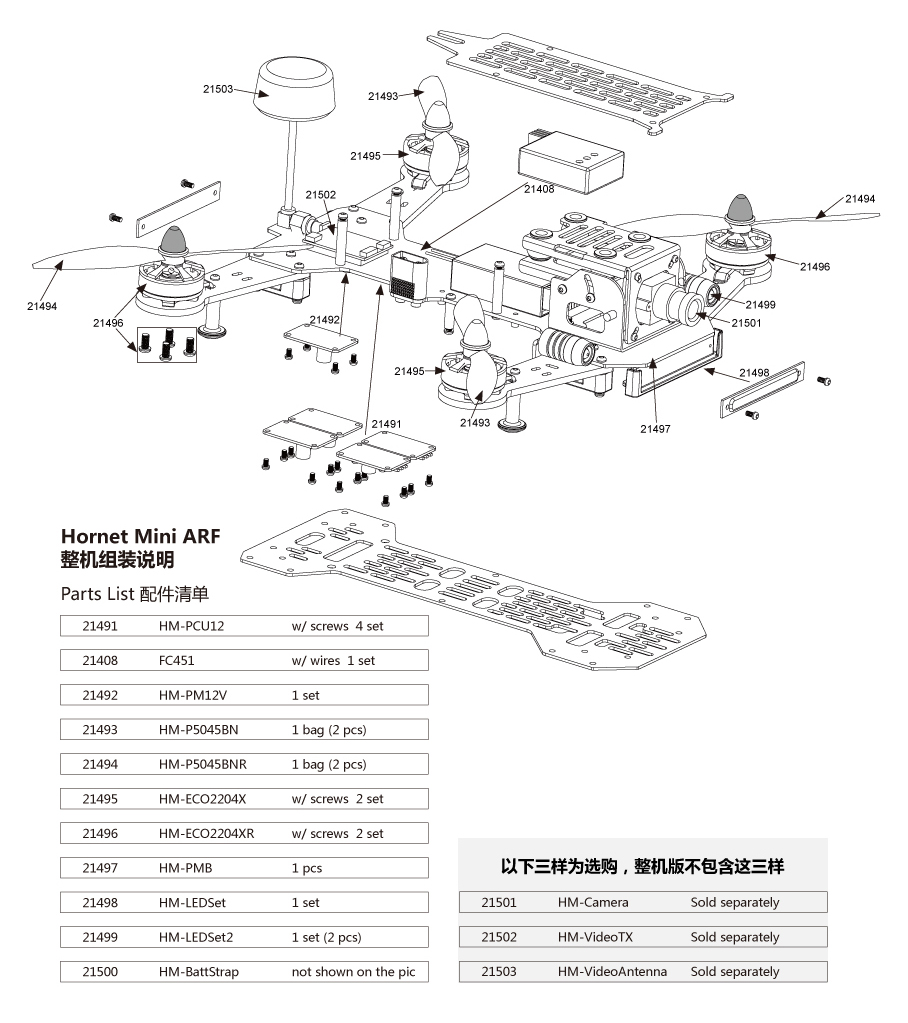

Hornet Mini ARF(#21505)

Item No.
Name
21491 HM-PCU12
21408 FC451
21492 HM-PM12V
21493 HM-P5045BN
21494 HM-P5045BNR
21495 HM-ECO2204X
21496 HM-ECO2204XR
21497 HM-PMB
21498 HM-LEDSet
21499 HM-LEDSet2
21500 HM-BattStrap
21501 HM-Camera
21502 HM-VideoTX
21503 HM-VideoAntenna
